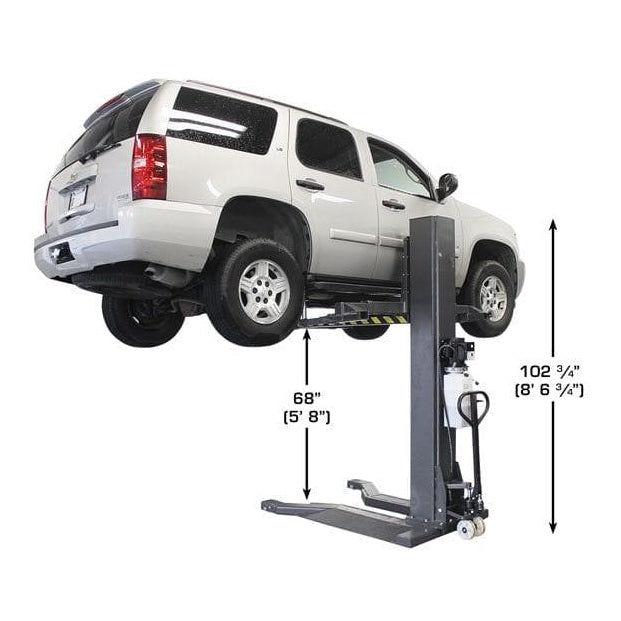

Atlas PSP-6000 6,000 lb Portable Single Post Lift
Description
The Atlas® PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.
The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.
The Atlas® PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.
Features
6,000 lbs. Capacity
Portable
Low Profile Design
Rigid Base Construction
Built in Drive-over Ramps
Single Point Lock Release
Two-Stage Telescoping Swing Arms
Locking Arm Restraints
Lifting Height: 5′ 11 2/3″ (71 2/3″)
110volt Electric Operation (Requires 30amp Breaker)
Free 8 Piece Truck Adapter Set
Includes Double Screw-up Adapters
Shipping Weight: 1,900 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck
Specifications
Atlas® PSP-6000 Specifications | |
Capacity | 6,000 LB. |
Overall Height | 102 3/4" (8' 6 3/4") |
Max. Lifting Height (Without Truck Adapters) | 71 2/3" (5' 11 2/3") |
Max. Clearance | 68" (5' 8") |
Minimum Height | 5" |
Overall Maximum Dimensions | L: 111 1/2" x W: 96" x H: 102 3/4" |
Column Size | 10 1/2" x 12 1/2" |
Distance Between Lifting Pads (Column Side to Offside) | 39 1/2" to 81" |
Distance Between Lifting Pads (Column Side to Column Side) | 53" to 73" |
Distance Between Lifting Pads (Offside Side to Offside) | 54 1/3" to 91 1/2" |
Motor/Electric Requirement | 110volt, 30 amp breaker required |
Oil Requirement | 3-5 Gallons AW32 or AW46 (NOT INCLUDED) |
Shipping Weight | 1,900 lbs. |
Adapter Heights | 4 Each 2.75", 6” |
Arm Hole/Adapter Peg Size | 2” |
