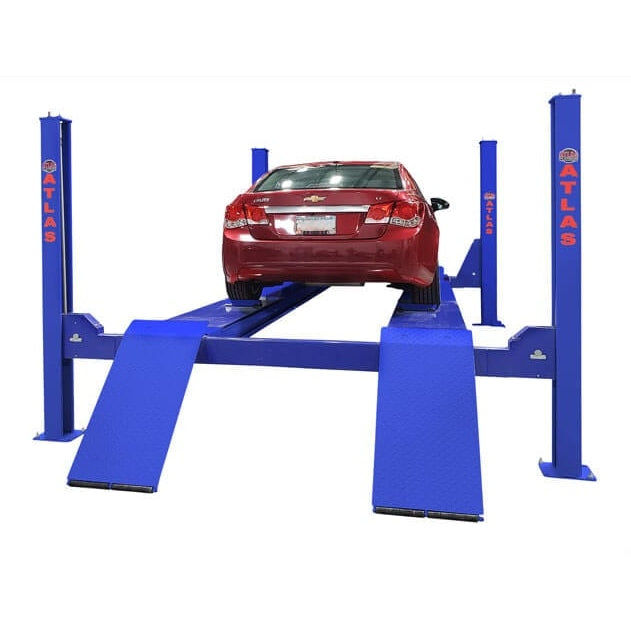

Atlas Platinum PVL14OF-EXT ALI Certified Open Front Alignment 4 Post Lift
Product Overview
The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments. The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
Key Features
ALI Certified Lift
14,000 lb. Capacity
Heavy Duty, Commercial Grade
Alignment Lift, Includes Built in Slip Plates & Turntables
Open Front Design for Better Access
Extra Long Runways
Adjustable Lock Ladder Design
Technical Specifications
Model | PVL14OF-EXT |
Capacity | 14,000 lb. |
Runway Length | 223 1/2" (18' 7 1/2") |
Runway Width | 20" |
Shipping Weight | 4,462 LB. |
Motor | windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty. Please note that if you order an Atlas item |
Electrical Requirement | 220 volt single |
Motor/Electrical Requirement | 220 volt single (1) phase.A 30 amp breaker is recommended |
Air Requirements | 85-115 PSI |
Lifting Height | 73 1/4" (6' 1 1/4") |
Overall Width Of Columns (Without Motor) | 140 1/8" (11' 8 1/8") |
Overall Width Of Columns (With Motor) | 148 3/4" (12' 4 3/4") |
Overall Length With Approach Ramp | 272 1/8" (22' 8 1/8") |
Length Between Columns | 207" (17' 3") |
Thickness Of Runway | 7" |
Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
Installation Requirements
Install on a clean, level concrete slab meeting the published site requirements (3000 PSI).
Verify overhead clearance for the fully raised height, accessories, lighting, garage door tracks, and opener hardware before installation.
Provide the required utility service before setup: Motor: windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty. Please note that if you order an Atlas item; Electrical Requirement: 220 volt single.
